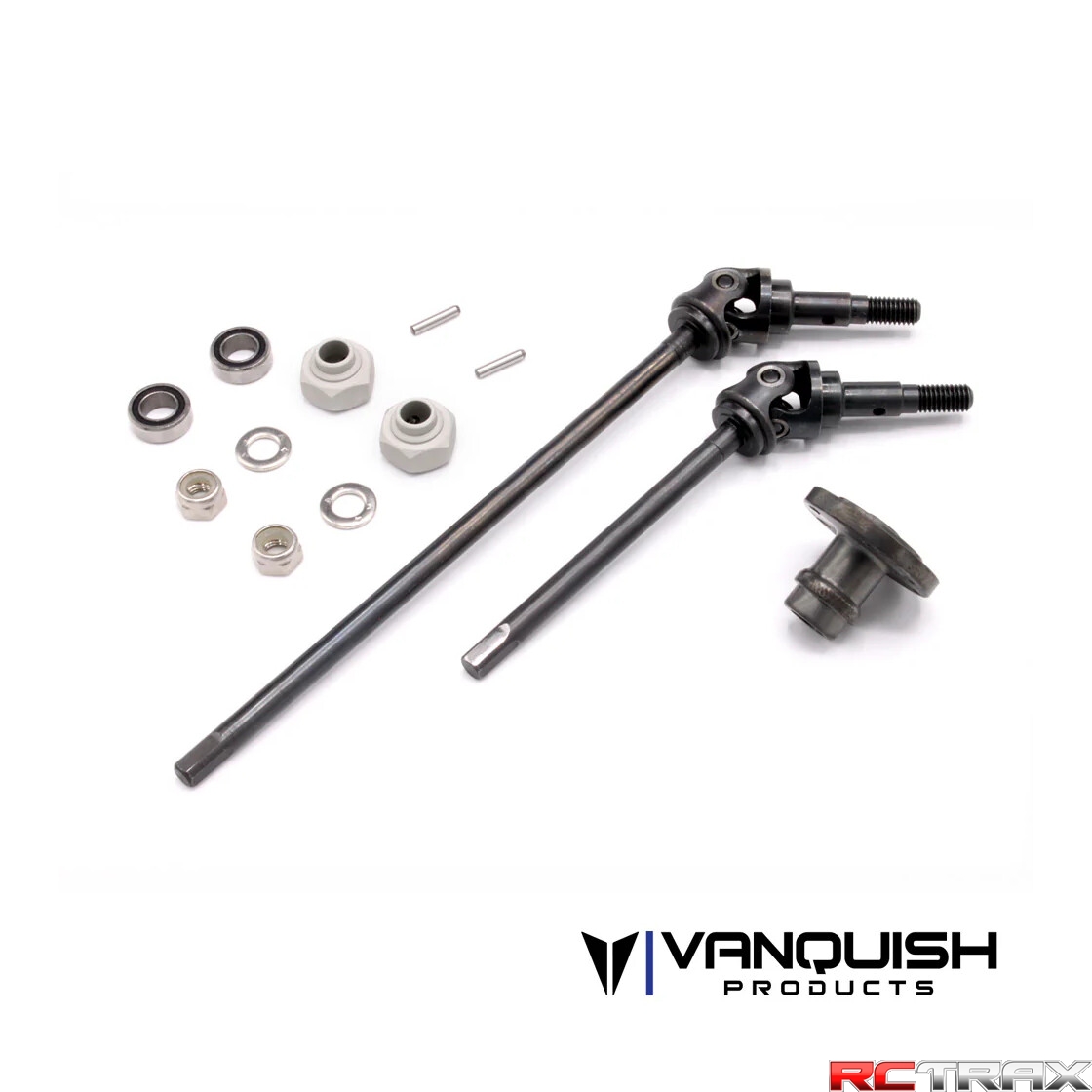

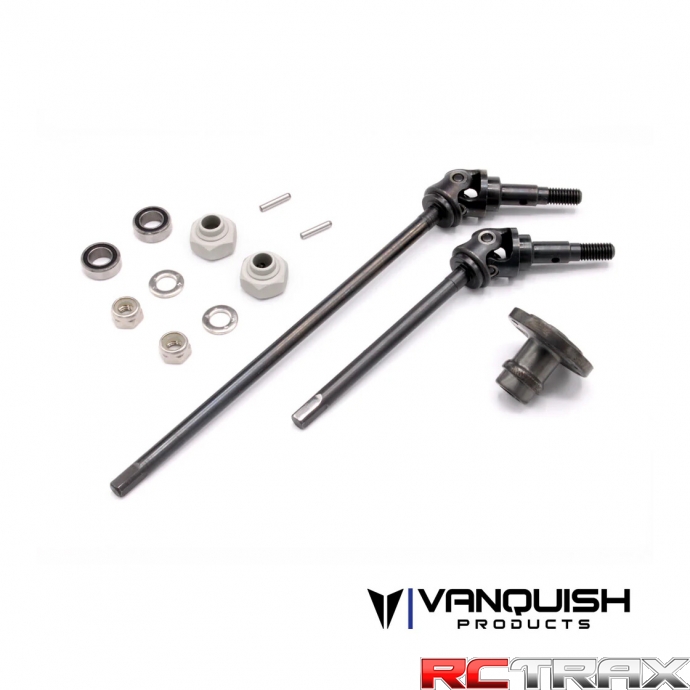

Vanquish VPS08110 VXD Universal Axle Package

Vanquish Ultra Heavy Duty Rebuildable Universal-style axle shaft for any AR60 axle

• Fully constructed of domestic high strength chromoly steel
• 6mm Stub Shaft Design through hex pin hole*
• M5 Thread on Shaft
• Squared Locker Engagement Design - Features higher cross sectional area engagement for increased strength
• Chromoly Spool is included and required for use with these axles
• 12mm Hexes for 6mm stub shaft
• Includes X2 6x11x4mm Bearings for 6mm Stub Shaft
• Comes hand assembled
• Ultra high strength 4-way cross pin
• Replaceable bushings for a longer lasting product
• Full selection of rebuild and replacement parts available
• Achieve up to 60 degree of steering angle
• Design for maximum material between link mount screws, some rubbing may occur**

*M5 threaded stub shaft requires the use of an 8mm driver to tighten the included lock nut. Many 8mm drivers have too large of an outside diameter to fit into many wheels. Recommended use Vanquish Metric Nut Driver Set (VPS08440).

**May require slight grinding of screws that hold lower link mounts.

Universal style axles will have a chattering effect at high angles, this is normal with almost all universal style designs.
