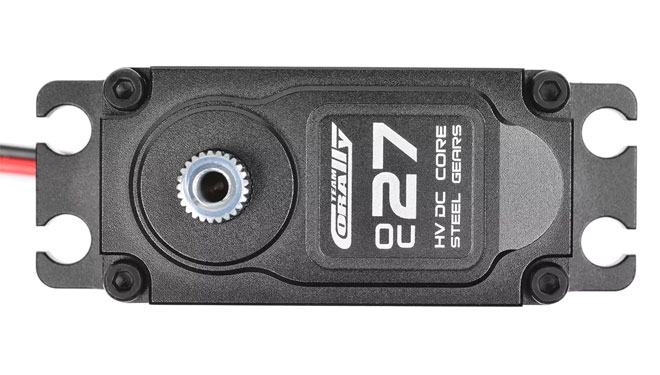

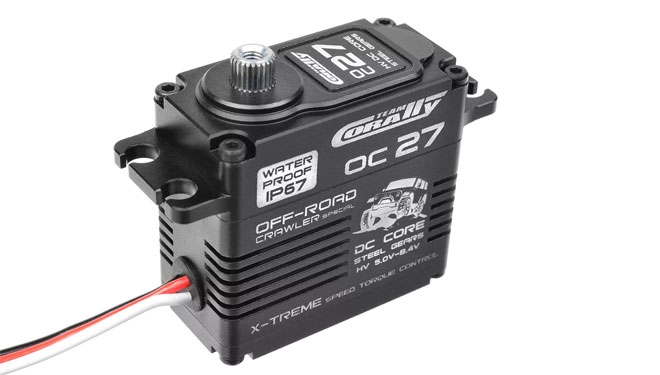

Serwo Team Corally C-52015 OC-27 HV Digital 5-8.4V IP-67 Core DC Motor Steel Gear Ball Beared Full Alloy Case
Serwo Corally C-52015 OC-27 HV Digital Servo 5-8.4V IP-67 Core DC Motor Steel Gear Ball Beared Full Alloy Case
You are looking for some powerful control
We developped these servos with the basher in mind, ultimate digital power, precision and reliable.
Check out these awesome features
Features:
- Full CNC machined alloy case
- Digital LHV 5.0 - 8.4V

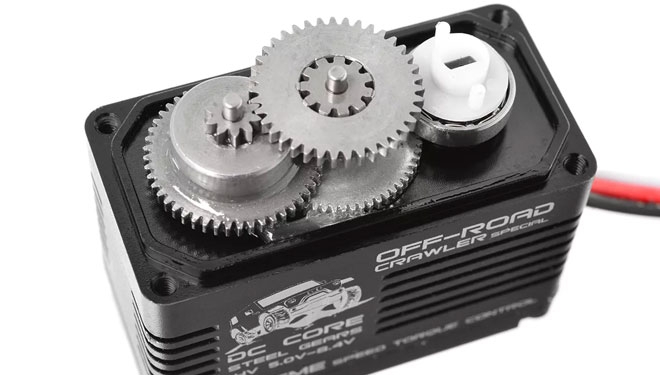

- Metal gears
- Ball Raced
- Core DC motor
- High speed and torque
- IP67 Waterproof
Tech. Specs:
Voltage range 5.0 - 8.4V
Speed @ 6.0V 0.15 sec/60°
Speed @ 7.4V 0.13 sec/60°
Speed @ 8.4V 0.11 sec/60°
Torque @ 6.0V 17.7 kg/cm
Torque @ 7.4V 23.6 kg/cm
Torque @ 8.4V 27.3 kg/cm
Dimensions (mm) 40.4x20.4x36.7
Weight 75g / 2.55oz
| Servo Technology: | Digital Ultra High Voltage |
| Servo Case: | CNC alloy |
| Input Voltage (V): | 6.0V - 8.4V |
| Servo Type / Size: | Standard |
| Water Protection: | Waterproof IP67 |
| Motor Type: | Core Motor |
| Gear Material: | Steel Gears |
| Ball Beared: | Ball Beared |
| Servo Power - Torque Kg/cm: | > 25 Kg/cm |
| Servo Speed 60°/sec: | 0.11 - 0.15 Sec/60° |
| Length (mm): | 40,4 mm |
| Width (mm): | 20,4 mm |
| Height (mm): | 36,7 mm |
| Weight (g): | 75 g |
| Speed 60°/Sec @ 6.0V: | 0,15 sec/60° |
| Speed 60°/Sec @ 7.4V: | 0,13 sec/60° |
| Speed 60°/Sec @ 8.4V: | 0,11 sec/60° |
| Torque kg/cm @ 6.0V: | 17.7 Kg/cm |
| Torque kg/cm @ 7.4V: | 23.6 Kg/cm |
| Torque kg/cm @ 8.4V: | 27.3 Kg/cm |
| Connector type: | JR |
| Spline size: | 25T Spline |
