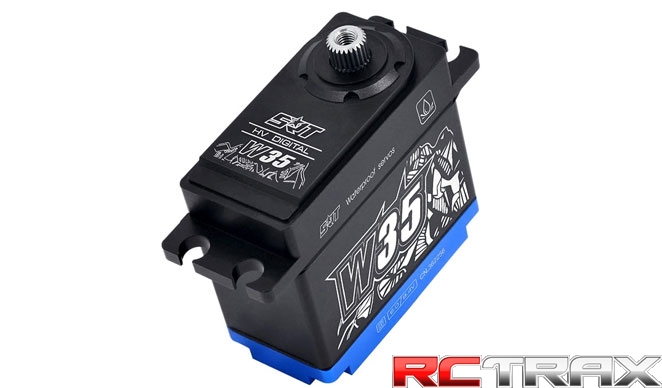

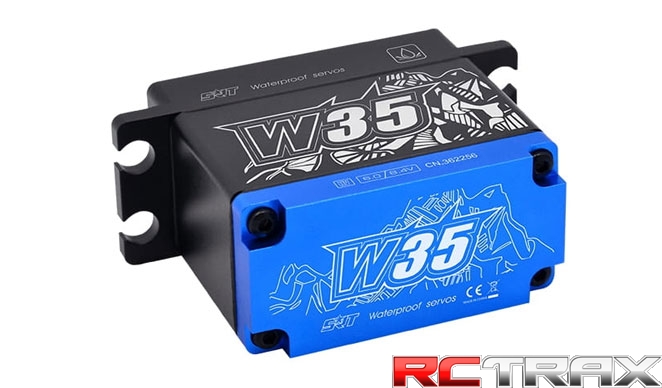

Serwo cyfrowe SRT W35 HiVOLT WODOODPORNE Najnowsza generacja serwonapędów SRT zapewnia moc potrzebną do dowolnego zastosowania w modelach samolotów, statków, samochodów, ale także robotycznych „zabawkach”. Są to rozmiary standardowe z zasilaniem do 6V.
Idealny do samochodów terenowych w skali 1/10 i 1/8, Crowlerów 1/10, samochodów ekspedycyjnych i łodzi NMB dwa główne łożyska Wodoodporny Wał wyjściowy 25 zębów
SPECYFIKACJA
Type Digital Bearing Dual Motor Type Coreless Gear Type Metal Gear Material Titanium & Steel Control System Pulse Width Control Working Frequence 1520μs / 330hz Operating Voltage dc6.0-8.4v Operating Temperature Range -10 to + 60 degree Operating Speed 6.0V: 0.15 sec/60 degrees at no load 7.4V: 0.12 sec/60 degrees at no load 8.4V: 0.10 sec/60 degrees at no load Stall Torque 6.0V: 25.0kg.cm (347.2 oz/in) 7.4V: 30.0kg.cm (416.6 oz/in) 8.4V: 35.0kg.cm (486.1 oz/in) Potentiometer Drive Direct Drive Dimensions 40.7x20.5x38.6 mm /1.60x0.81x1.52 in Weight 82.5g (2.91 oz) Connector Wire Length jr 360 mm
