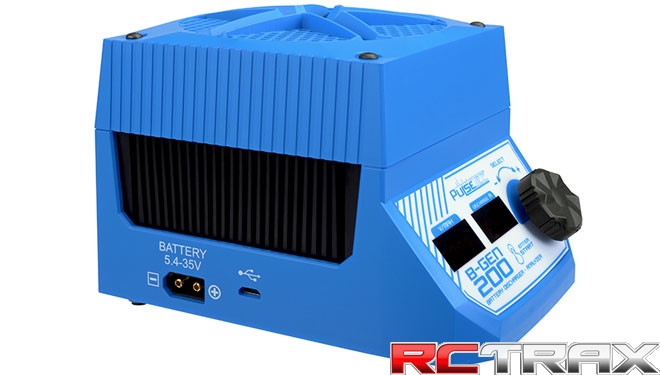

Rozładowywarka Pulsetec B-Gen 200 - 200W Power
- 459,00 zł z VAT
W magazynie:
Dostępny
The B-GEN 200 is a powerful discharging device to discharge any type of battery at up to 30 amps or a maximum of 200W. The B-GEN 200 measures and compares the performance and quality of your batteries.
B-GEN 200 will precisely measure the capacity of your batteries and takes the guesswork out of choosing the best battery for your application. The B-GEN 200 is way more than just a simple battery discharger or a battery load tester.
The B-GEN 200 can test virtually any type or size of battery, any chemistry or number of cells, up to 35 volts. The B-GEN 200 is small in size but big in performance. The B-GEN 200 can continuously discharge at full load (200W) because of the high performance cooling system and the use of high performance MOSFET’s from the well-known brand IXYS.

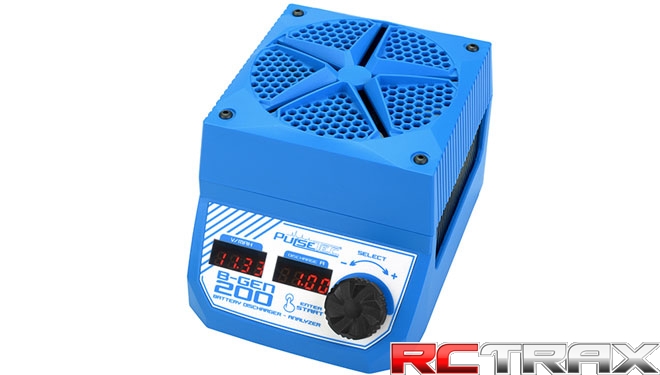

The rotary dial, simplify your operation and the digital LED display’s provide the accurate information at any time.
SPECIFICATIONS:
Accepted Voltage Range : . . . . . . . 5,40 - 35,00V
Low Voltage Alert :. . . . . . . . . . . . . . . . . . . <5,2V
High Voltage Alert :. . . . . . . . . . . . . . . . . . . .>35V
Max Discharge Power :. . . . . . . . . . . . . . . . 200W
Discharge Current range : . . . . . . 0,01A - 30,00A
Current consumption in Sleep Mode. . . .<100uA
Standby Current :. . . . . . . . . . . . . . . . . . . <35mA
Current Display Accuracy: . . 0.01-10.00A ±60mA
10.00-30.00A ±2%
Voltage Display Accuracy: . . . . . 5.4-10V ±60mV
10-20V ±120mV
20-35V ±160mV
Capacity Display Accuracy :. . . . . . . . . . . . . ±3%
Dimension :. . . . . . . . . . . . . . . . . 136x105x96mm
Weight :. . . . . . . . . . . . . . . . . . . . . . . . . . . . .858g
Input voltage (AC/DC) - 5.4 - 35V DC
Battery Type - LiPo/LiIo/LiFe/NiCd/NiMH
Max. Discharge Power (Watt) - 200W
Discharge Current (A) - 0.01 - 30.0A
Discharge Current (A) - 0.01 - 30.0A
Nr of Li-xx Cells - 2 - 8
Nr of Ni-xx Cells - 6 - 24
Audible Alarms - Yes
Dimensions (mm) - 136x105x96mm
Weight (g) - 858g
Discharge Current (A) - 0.01 - 30.0A
Discharge Current (A) - 0.01 - 30.0A
