1/10 Maverick MV29000 Regulator bezszczotkowy

1/10 Maverick MV29000 Regulator bezszczotkowy

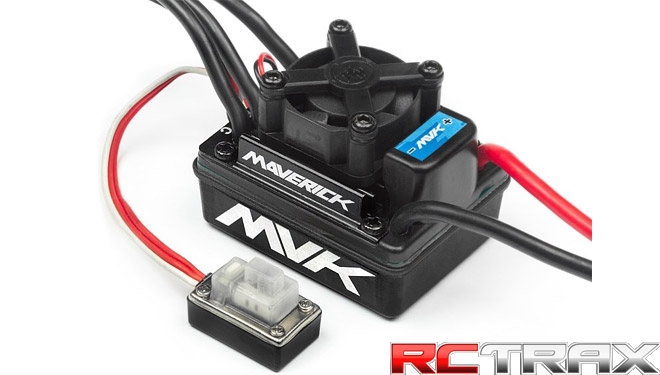

    Regulator bezszczotkowy Maverick MSC-29BL-80WP Brushless ESC

    Features:
    1. Water-resistant* and dust-proof. The ESC has been designed to work in wet conditions.
    a.*Please remove the cooling fan when using the ESC very wet conditions.
    b.*After using the ESC in wet conditions, please clean and dry it to avoid the oxidation to copper connectors
    2. 2-3S Capalable (for 3S you must change the standard 5V cooling fan to a 12V cooling fan, or supply the 5V cooling fan from the receiver 5-6V);
    3. Compatible with sensorless brushless motor.
    4. 3 running modes (“Forward with brake” mode, “Forward/Backward with brake” mode, and “Rock Crawler” mode).
    5. Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment.
    6. 9 Punch modes from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks.
    7. Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
    8. Easily programmed with the “SET” button on the ESC

    Specification:
    Continuous Current: 80A
    Burst Current: 540A
    Resistance: 0.0004 ohm
    Application: 1/10 scale On-Road and Off-Road
    Motor Limit:
    1) 2S LiPo/6 cell NiMh; On-Road: ≥ 5.5T; Off-Road: ≤ 6000Kv; 3650 Size Motor
    2) 3S LiPo/9 cell NiMh; On-Road: ≥ 8.5T; Off-Road: ≤ 4000Kv; 3650/3660 Size Motor
    Battery: 4-9 cells NiMh or 2-3S LiPo
    1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5V cooling fan on the ESC;
    2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5Vcooling fan to 12V cooling fan, or supply the 5V cooling fan from the receiver (5-6V);
    Built-in BEC: 6V/2A Linear
    Program Port: Multiplexed with cooling fan port
    Motor Type: Sensorless Brushless
    Dimension: 46x34x35mm
    Weight: 82g

    Do regulatora polecamy silnik MV29001 - Maverick MM-29BL-4000 Motor
