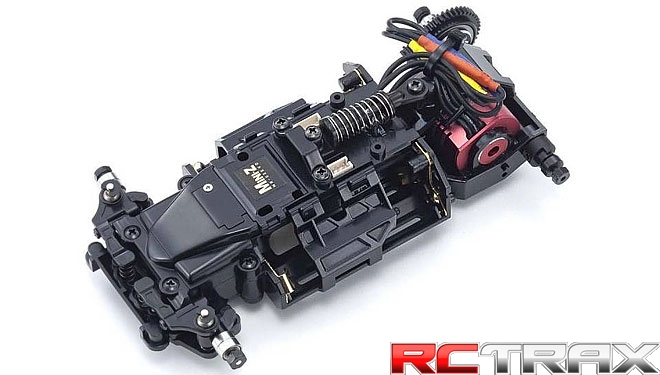

Kyosho MINI-Z Racer MR-03EVO Chassis Set (W-MM/8500KV)
W-MM configured chassis equipped with a high-performance 8500KV motor, EVO chassis set is the perfect step up from the Readyset.
First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a separate receiver board that provided the flexibility of transmitter choice. Two years after its stunning debut, the MR-03 EVO lineup has been strengthened with a race-based chassis. A 8500KV motor is combined with a standard specification chassis that you can customize to your liking with various optional parts available.While retaining the full bearing specifications and Ball Diff Set II, align the base chassis with the new standard speed range and open a wider group of users. From the compatible receiver units : RA-40 (EX-6R / EX-II / EX-RR/EX-LDT); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from the Readyset. Perhaps the MR-03EVO chassis set’s greatest advantage is that it can also be combined with a brushed motor (No.MZ9E, sold separately) to adapt to an even wider range of driving conditions.
First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
Includes new KYOSHO SPEED HOUSE XSPEED 85 brushless motor (8500KV).
I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
Equipped with ball bearings and Ball Diff Set II. ＊Newly designed separate receiver cover and front upper arm mount make tread adjustment easier. ＊Compatible with optional parts for the MR-03 chassis.
Dane techniczne
Skala
1:27 (1:28)
Długość
123,5 mm
Szerokość
70-76 mm
Wysokość
35 mm
Rozstaw osi
98 mm (LL)
Rozstaw kół
Szeroki F:61,5-65,0 mm R:61,5-65,0 mm
Rodzaj podwozie
RWD (MR-03EVO)
Umieszczenie silnika
MM
Offset przednich kół
φ25x8,5 mm (sprzedawane oddzielnie) (dla RWD)
Offset tylnych kół
φ25x8,5-11 mm (sprzedawane oddzielnie)
Waga
135g (bez karoserii / opon / felg, z akumulatorkami AAA)
Silnik
KYOSHO SPEED HOUSE XSPEED 85 (KV8500)
Zawartość zestawu
Podwozie
Fabrycznie złożone podwozie MR-03W-MM
Części zamienne/opcjonalne
Części do zmiany rozstawu kół przednich
zębatki atakujące (pinion gears) 6T, 7T, 8T, 9T
nakrętki
inne
Narzędzia
Klucz do kół
narzędzie do zmiany zębatki atakującej
Wymagane do uruchomienia
Akumulatory/baterie do samochodu 4 x AAA bateria alkaliczna lub 4 x AAA akumulator Ni-MHWięcej
Karoseria ASC (Auto Scale Collection (karoseria, felgi, opony)
Odbiornik kompatybilny z podwoziem Mini-Z EVO
Nadajnik kompatybilny z odbiornikiem
Akumulatory/baterie do nadajnika
Opony / Felgi
