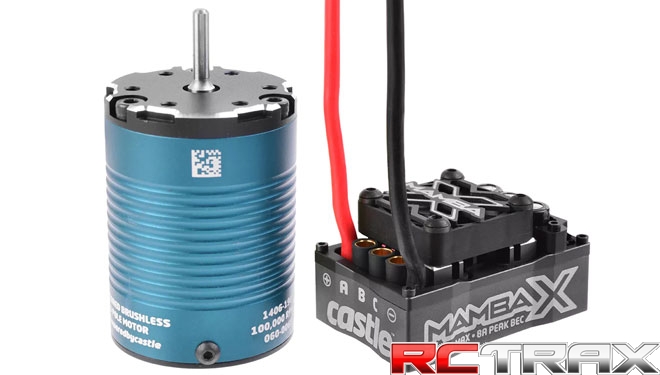

Combo Castle Creations MAMBA X Sensored ESC 2-6S 1406-2850KV Crawler Edition 2-4S

Specyfikacja techniczna:

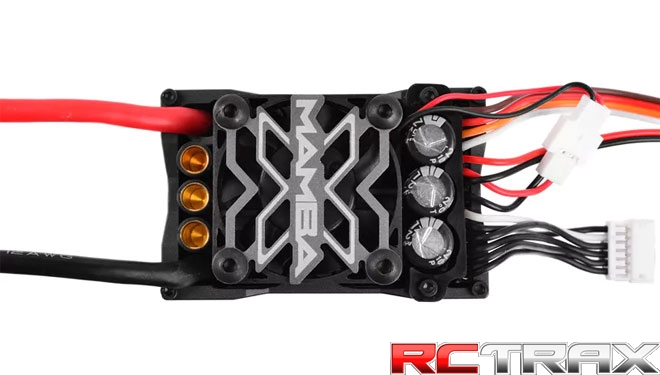

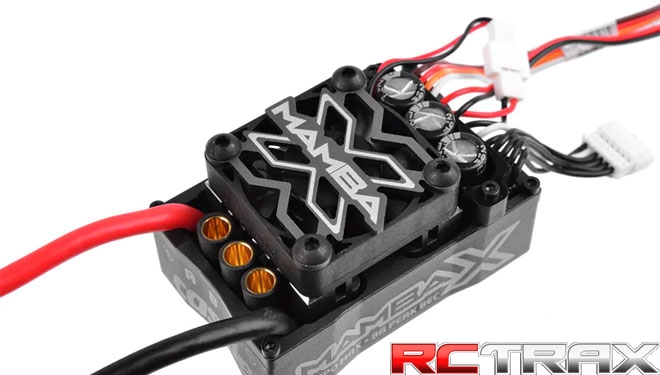

ESC- Input Voltage Range (V)
    2S - 6S Li-Po

ESC - Current - Cont. (A)

ESC - Current - Peak (A)

ESC - Current - Burst (A)

ESC - BEC - Voltage (V)
    5.0V - 8.0V adjustable in 0.1V increments

ESC - BEC - Cont. (A)

ESC - BEC - Peak (A)
    8,00

ESC - Protection
    Waterproof

ESC - Cooling Fan
    Yes, 30mm

ESC - Case Material
    Aluminium + Plastic

ESC - Programming

ESC - Firmware Update
    Supported

ESC - Telemetrie Aux.
    No

ESC - Data Logging
    Yes, stored in ESC

ESC - Real-Time Data

        Throttle Status (%) (Input / Output)
        RPM (T/min)
        Current (A)
        Voltage (V) (Current / Min.)
        ESC Status

ESC - Dimensions

ESC - Length (mm)
    60,00

ESC - Width (mm)
    52,00

ESC - Thickness (mm)
    43,00

ESC - Wires (AWG) - Battery
    10 AWG

ESC - Wires (AWG) - Motor

ESC - Connector - Battery
    None

ESC - Weight (g)
    166,00

ESC - Application

ESC - Application
    1/10 - 1/8 Cars

ESC - Motor Type
    SmartSense™ Brushless, Sensored Only, Brushed

ESC - Motor Control

        Forward - Brake
        Crawler Mode HILL HOLD™
        Forward - Brake - Reverse

ESC - Level
    Hobby - Sport - High-End

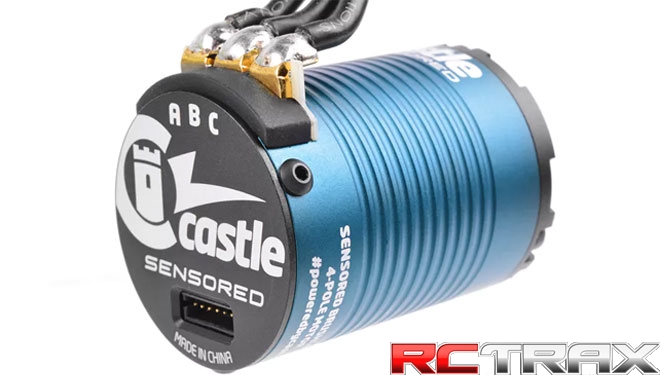

Motor - Specs

Motor - Size ID
    1512

Motor - Type
    Brushless - Sensored

Motor - Class
    Modified Motor

Motor - Application

        1/8 Buggy
        1/8 GT - Rally Game
        1/8 Pan Car
        1/8 On-Road
        1/10 SCT 4WD

Motor - Compliant

Motor - Input Voltage Range (V)
    3S - 4S Li-Po

Motor - Turns (T)

Motor - KV (Rpm/V)
    2650,00

Motor - RPM Max.
    60000,00

Motor - Timing
    Fixed Timing

Motor - Poles
    4-Pole Rotor

Motor - Stator
    12-Slot Stator - 0.2 Steel Laminations

Motor - Dimensions

Motor - Dia. ø (mm)
    41,40

Motor - Length (mm)
    68,00

Motor - Shaft Dia. ø (mm)
    5.0 mm

Motor - Shaft Length (mm)
    20,00

Motor - Mounting Holes
    M3 / M4 @ 25.4 mm

Motor - Wires (AWG)
    10 AWG

Motor - Connector
    Bullit 6.5mm

Motor - Ball Bearing - Front

Motor - Ball Bearing - Rear
